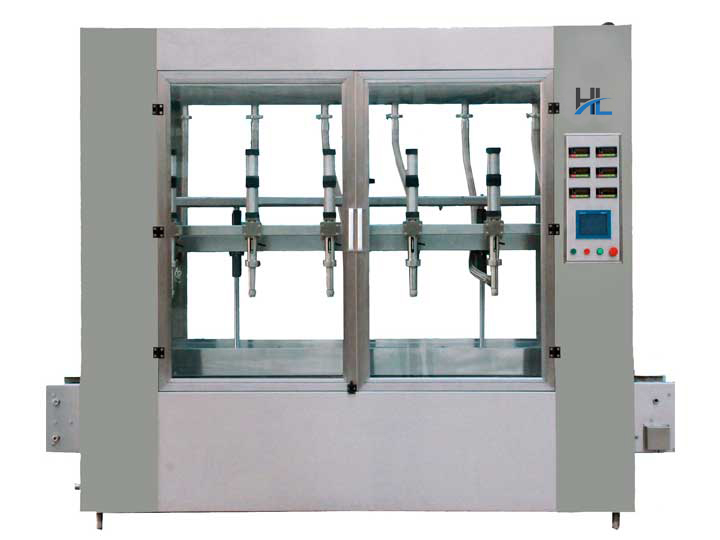

BCZ50-6D Automatic Weighing Filling Machine
Key word：BCZ50-6D Automatic Weighing Filling Machine
Classification：Filling Machine
Product overview：This machine is making up of the scale (with roller), chain-driven drum in and out structure, fast and Slow filling (with dive function), material tank, weight control meter and PLC control unit. This filling……
Details
Photo gallery
Video
Product Description:
This machine is making up of the scale (with roller), chain-driven drum in and out structure, fast and Slow filling (with dive function), material tank, weight control meter and PLC control unit. This filling machine can do the auto filling of different materials. It has the dive function can eliminates the splash and foaming can.
·Nozzle Outer Diameter: Ф40mm
·Precision: ±0.2%
·Filling Volume: 5Kg-30Kg
·Speed: ≤600 bottles/hour
·Air Pressure: 0.6-0.8Mpa
·Air Consumption: 150L/min
·Power Source: AC380V/50Hz
·Power: 2Kw
·Weight: about800Kg
·Machine dimension (L×W×H) : 2800mm×1400mm×2400mm
This machine is making up of the scale (with roller), chain-driven drum in and out structure, fast and Slow filling (with dive function), material tank, weight control meter and PLC control unit. This filling machine can do the auto filling of different materials. It has the dive function can eliminates the splash and foaming can.
Main Performance Parameter:
·Applicable Dimension: Min140×200×320mm,Max260×290×500mm·Nozzle Outer Diameter: Ф40mm
·Precision: ±0.2%
·Filling Volume: 5Kg-30Kg
·Speed: ≤600 bottles/hour
·Air Pressure: 0.6-0.8Mpa
·Air Consumption: 150L/min
·Power Source: AC380V/50Hz
·Power: 2Kw
·Weight: about800Kg
·Machine dimension (L×W×H) : 2800mm×1400mm×2400mm
-
