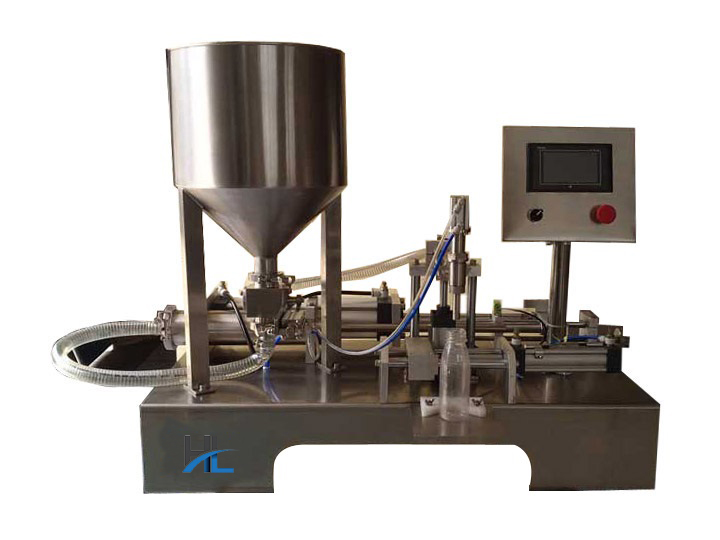

BG1000-1E Semi-automatic Piston Filling Machine
Key word：BG1000-1E Semi-automatic Piston Filling Machine
Classification：Filling Machine
Product overview：This machine have tee filling valve, in cylinder reciprocating motion under the action of filling. Piston ring seal are import, wear-resisting, corrosion resistance. Greatly extended service life.……
Details
Photo gallery
Video
Product Description:
This machine have tee filling valve, in cylinder reciprocating motion under the action of filling. Piston ring seal are import, wear-resisting, corrosion resistance. Greatly extended service life.
·Suitable diameter of bottles : Ф30mm~Ф100mm
·Measure precision : ±1%
·Production capacity : ≤900 bottles/hour
·Air pressure : 0.6~0.8Mpa
·Amount of Air-consuming : 40 l/min
·Power supply : AC 220V/50Hz
·Power : 0.5Kw
·Machine weight : about 70Kg
·Machine dimension (L×W×H) : 1200mm×600mm×800mm
This machine have tee filling valve, in cylinder reciprocating motion under the action of filling. Piston ring seal are import, wear-resisting, corrosion resistance. Greatly extended service life.
Main Performance Parameter:
·Filling volume : 60ml~1000ml·Suitable diameter of bottles : Ф30mm~Ф100mm
·Measure precision : ±1%
·Production capacity : ≤900 bottles/hour
·Air pressure : 0.6~0.8Mpa
·Amount of Air-consuming : 40 l/min
·Power supply : AC 220V/50Hz
·Power : 0.5Kw
·Machine weight : about 70Kg
·Machine dimension (L×W×H) : 1200mm×600mm×800mm
-
